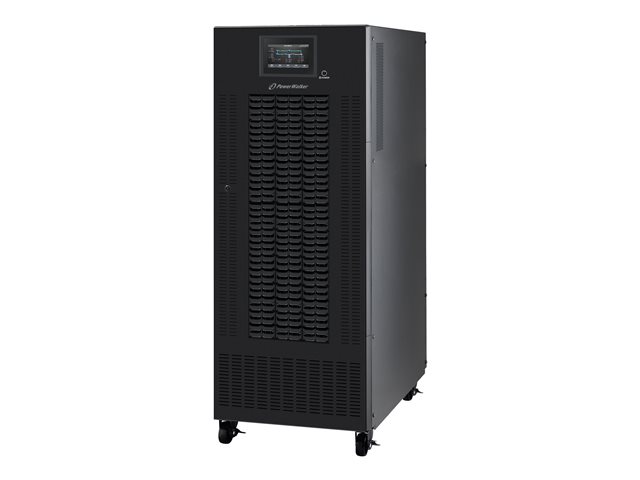

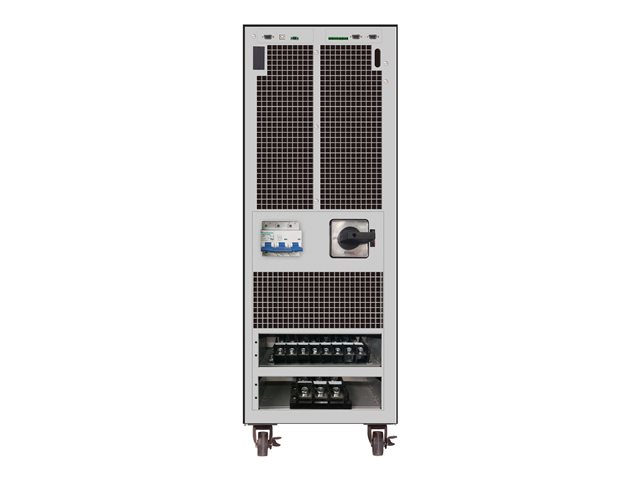

PowerWalker VFI 80K CPG PF1 3/3 BX

UPS - AC 190 - 520/305 - 478 V - 80000 Watt - 80000 VA - 3-fas - utan batteri - Ethernet, RS-232, USB
1-3 dagar leveranstid Ej i lager
Tillverkare BlueWalker
Artikelnr 10122163
  • 122 933,60 SEK
  • Finansiering ej tillgänglig
Lägg i kundvagn
  • Information
    • Unity power factor (kVA = kW)
    • Included SNMP Manager (the intelligent slot is by default used for communication card)
    • Parallel operation up to 3 units
    • Dual input and adjustable charging current
    • Adjustable battery number up to 40pcs for high efficiency
    The PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction. Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units. Each unit is equipped by default with SNMP Card to increase control over the unit and offer embedded monitoring over IP.
